CS4341 is a complete stereo digital-to-analog system, including digital interpolation, fourth-order DeltaSigma digital-to-analog conversion, digital de-accent and switched capacitor analog filtering. Advantages of this architecture include: ideal differential linearity, no distortion mechanism due to resistance matching errors, no linear drift with time and temperature, and a high tolerance for clock jitter.
Pin definition
The CS4341 accepts data at an audio sampling rate of 4khz to 100khz, has very low power consumption, and operates over a wide power range. The CS4341 features DVD players, CD players, set-top boxes and automotive systems ideal.

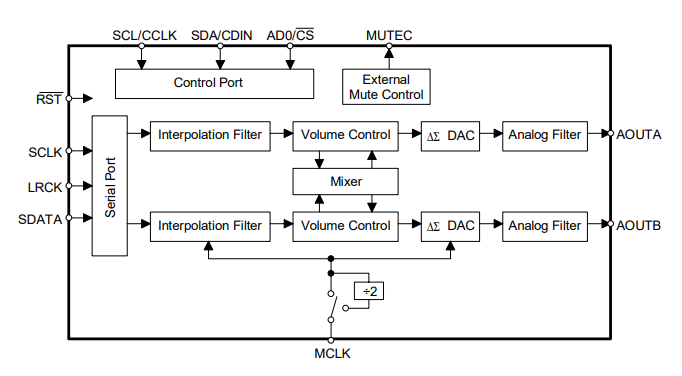

Block diagram

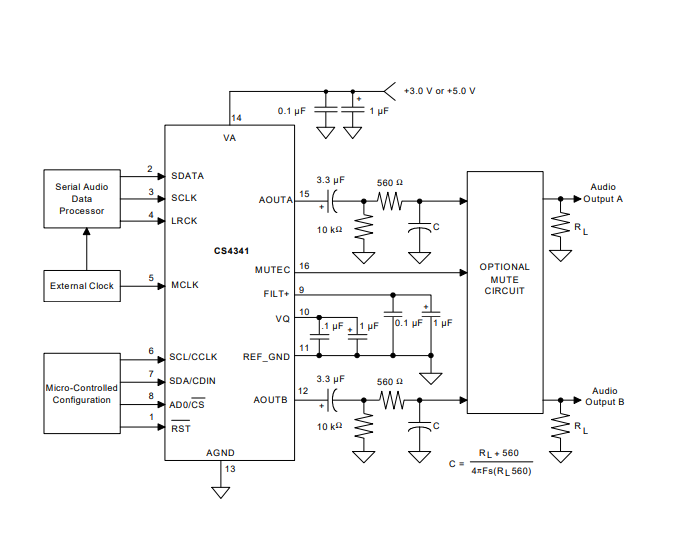

Typical connection diagram
Features
● 101 dB dynamic range
● -91 dB THD+N
● + 3.0V or + 5.0V power supply
● Low clock jitter sensitivity
● Filtered row-level output
● 32,44.1 on-chip numbers to emphasize 48 KHZ
● ATAPI mixing
● Digital volume control Soft ramp
- 94 dB attenuation
- 1db Step Size
- Zero cross click free transition
● Popguard Technology Control Click and persistent organic pollutants
● 33mw, 3.0V power supply
