The IDT71V416 is a 4,194,304 bit high-speed static RAM, organized at 256K x 16. It is manufactured using IDT's high-performance, highly reliable CMOS technology. This state-of-the-art technology, combined with innovative circuit design techniques, provides a cost-effective solution for high speed memory needs. IDT71V416 has an output enable pin that runs at speeds up to 5ns and addresses access times up to 10ns.

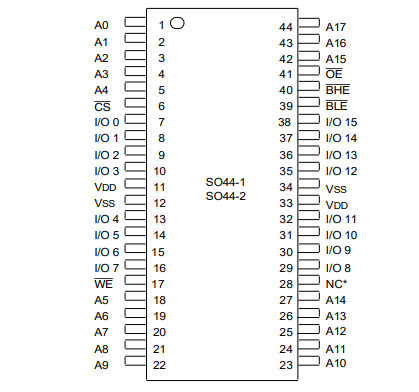

Pin Configurations

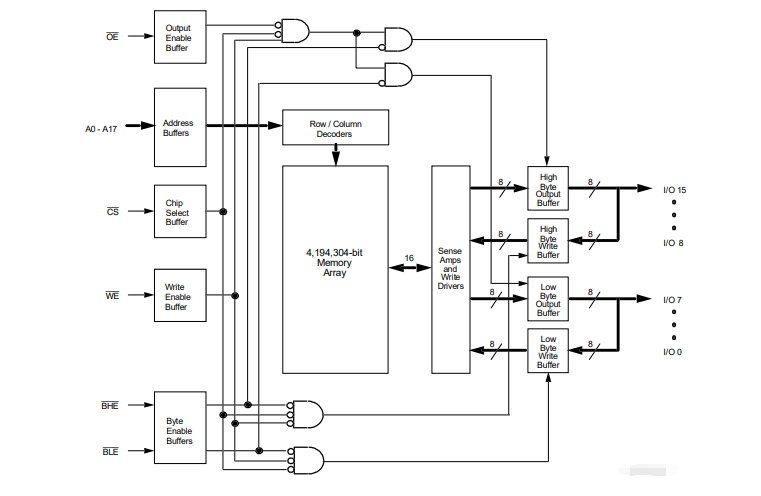

Function block diagram
All two-way inputs and outputs of the IDT71V416 are LVTTL-compatible and the operation comes from a 3.3V power supply. Full static asynchronous circuit, no clock or refresh operation is required. The IDT71V416 is packaged in a 44-pin, 400 mil plastic SOJ and a 44-pin, 400 mil TSOP Type II package and 48-ball mesh array in a 9mm x 9mm package
