REC300H-W, REC300H-W, from RECOM, now provides a wide range of 9V to 36VDC input and output options, 12V, 15V, 24V and 48VDC are isolated to 3kVDC for 1 minute. In addition, the REC150H-UW rated at 150w has an ultra wide input range of 9V to 75VDC, and the output voltage options are the same, except for 28V and 54VDC, which are applicable to avionics systems and PoE applications and isolated at 2.5kVDC/1min.

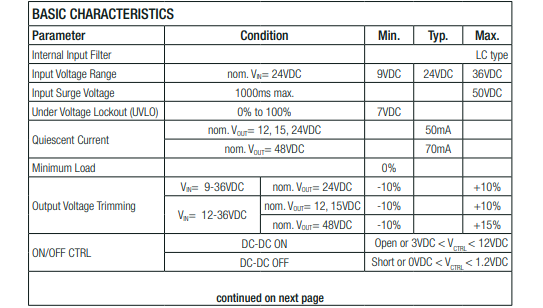

Specifications
The product has a high degree of regulation and protection to prevent short circuit, input undervoltage, output overload and overvoltage. The output is adjustable+/- 10% and remote sensing is provided. An enable input is also provided. In order to adapt to harsh environment, these components are completely sealed, with high efficiency function within the load range, and the maximum bottom plate temperature can reach 105C. "Class A" and "Class B" EMC specifications can be met by external filtering.
The half brick format is 57.9mm x 61mm floor area, 12.7mm high with floor cooling. The through-hole pin connection of the device adopts the standard configuration, so that the component can replace other products on the market, thereby reducing cost and improving performance. These new dc - dc are suitable for many applications and benefit from a wide range of input and output options, including telecommunications, industry, aerospace, and PoE.
Dimension Drawing (mm)
